• 3 x external 5,25" device bay
• 1 x external 5,25" device bay can be converted to an external 3,5" device bay
• 6 x internal 3,5" device bay
• 2 x 120 mm system fan in front
• 1 x 120 mm system fan in rear
• 2 x 140 mm system fan on the top
• 2 x USB 2.0 I/O port
• 1 x e-SATA I/O port
• HD and AC97 audio I/O ports
• Removable top cover
• Removable front panel
• Cable management
• ...

The case was already in use by my previous Home Office Computer 2014.

A special front panel has additionally been mounted to provide some USB 3.0 ports now (see below).

• 2 x USB 3.2 Gen 1 Type A port
• 1 x USB 3.2 Gen 1 Type C port
• 1 x SD slot
• 1 x Micro SD slot

CSL is one of the brands owned by the company Ganz Einfach GmbH .

The above overview has been derived from the German-speaking Wikipedia article Universal Serial Bus published on January 3rd, 2026.

• 80 PLUS Platinum Certified
  • 92% efficiency at 50% system load
  • ...
• 550 W Total continuous power
• Multiple 12 V output
• Tight voltage regulation (12 V, 5 V and 3,3 V) [±3%]
• Multi-GPU technology support (6-Pin and 8-Pin PCI-E connectors)
• 120 mm fluid dynamic bearing (FDB) fan

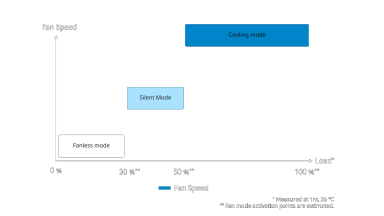

• Hybrid silent fan control
  • Fanless mode if load less than 30%
  • Silent mode if load between 30% and 50%
  • Cooling mode if load more than 50%
• Highly reliable Japanese 105 °C Aluminum electrolytic capacitors
• OCP - Over current protection
• OPP - Over power protection
• OTP - Over temperature protection
• OVP - Over voltage protection
• SCP - Short circuit protection
• UVP - Under voltage protection
• Fully modular cabling design
• Compact size (L x W x H): 140 mm x 150 mm x 86 mm
• ...

• AMD socket AM4 supporting AMD Ryzen™, AMD Ryzen™ with Radeon™ Vega™ Graphics, and AMD Athlon™ with Radeon™ Vega™ Graphics processors (list of supported CPUs)
• AMD socket AM4 chipset B450
• Supports (Dual Channel) DDR4 non-ECC memory up to 128 GByte (depending on the processor used) and
  • up to 2666 MHz without overclocking
  • up to 3200 MHz with overclocking
• 2 x PCIe 3.0 x16 slot for AMD Ryzen™ processors (either one runs in x16 mode and the other one is disabled or both run in x8/x4 modes)
• Multi-GPU support for AMD Ryzen™ processors
• 1 x PCIe 3.0 x16 slot for AMD Ryzen™ with Radeon™ Vega Graphics processors (supports x8 mode)
• 1 x PCIe 2.0 x16 slot (max. at x4 mode)
• 3 x PCIe 2.0 x1 slot
• M.2_1 socket 3 with M Key, Type 2242/2260/2280 (PCIe 3.0 x4 and SATA modes) storage devices support
• M.2_2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIe 3.0 x4 mode) storage devices support (only functional for AMD Ryzen™ processors)
• 6 x SATA 6 Gbit/s connector (the first four connectors support Raid 0, 1, and 10)
• Intel® Ethernet Controller I211-AT
• SupremeFX™ S1220A audio codec (see below section "Audio (onboard)" for detailed information)
• HDMI and DisplayPort output support for AMD Ryzen™ with Radeon™ Vega™ Graphics processors
  • Supports HDMI 2.0b with maximum resolution of 4096 x 2160 at 60 Hz
  • Supports DisplayPort 1.2 with maximum resolution of 4096 x 2160 at 60 Hz
• 2 x USB 3.1 Gen 2 port at the back panel (red-colored)
• 6 x USB 3.1 Gen 1 port
  • 4 connectors at the back panel (3 x type A and 1 x type C)
  • 2 connectors on the mainboard
• 6 x USB 2.0 port
  • 2 connectors at the back panel
  • 4 connectors on the mainboard
• ATX form factor 30,5 cm x 24,4 cm
• ...

• The PCIe 2.0 slot named "x16_3" shares bandwidth with the PCIe 2.0 slots named "x1_2" and "x1_3".
• When the M.2_1 socket 3 is operating in SATA or PCIe mode, the SATA 6 Gbit/s ports named "SATA6G_5" and "SATA6G_6" will be disabled.
• When the M.2_2 socket 3 is occupied by an M.2 device, the PCIe 3.0 slot named "x16_1" will run at x8 mode.

• 6 CPU cores
• 12 threads
• AM4 Socket
• Zen 3 processor architecture
• TSMC 7nm FinFET processor technology for CPU Cores
• 3.900 MHz base clock (average effective base frequency of all cores)
• Up to 4.400 MHz boost clock (for a single core)
• 64 KB 1st level cache per core
  • 32 KB data
  • 32 KB instructions
• 512 KB 2nd level cache per core
• 16 MB 3rd level cache
• Up to 3200 MT/s system bus (memory)
• Integrated AMD Radeon Vega Graphics capabilities (see the below section "GPU" for more details)
• 65 W Default TDP
• 45 W / 65 W Configurable TDP (cTDP)
• ...

• 32 GB capacity (2 x 16 GB memory modules)
• DDR4 SDRAM memory type
• 2.133 MT/s (PC4-17000) SPD speed
• 15-15-15-36 SPD timing

  •	CAS Latency (CL)	=	15
  •	RAS-to-CAS-Delay (tRCD)	=	15
  •	RAS-Precharge-Time (tRP)	=	15
  •	Row-Active-Time (tRAS)	=	36

• XMP 2.0 support
• 2.666 MT/s (PC4-21300) tested speed
• 16-18-18-35 tested timing

  •	CAS Latency (CL)	=	16
  •	RAS-to-CAS-Delay (tRCD)	=	18
  •	RAS-Precharge-Time (tRP)	=	18
  •	Row-Active-Time (tRAS)	=	35

• 1,2 V working voltage
• Aluminium head spreader (white-colored)
• ...

• Integrated AMD Radeon™ Vega™ Graphics capabilities based on the GCN 5.1 architecture
  • 7 graphics cores
  • 1.900 MHz graphics core frequency
  • 448 unified shaders
  • 28 texture mapping units (TMU)
  • 8 render output units (ROP)
  • 7 compute units (CU) - each of them consisting of
    • 64 shader processors
    • 4 texture mapping units
  • 1,7024 TFLOPS processing power
  • Maximum 16 GB GPU memory support
  • Vulkan Graphics API support (successor of AMD's revolutionary Mantle API)
  • DirectX 12.1 support
  • OpenGL 4.5 support (Note that this API has been superseded by the aforementioned Vulkan Graphics API)
  • DisplayPort 1.4 (3840x2160@60Hz) support
  • HDMI 2.0b (3840x2160@60Hz) support
  • AMD FreeSync 2 support
  • H.265 encoding & decoding support
  • VP9 decoding support
  • AMD Eyefinity support
  • ...

• 7.1-channel HD audio codec
• Simultaneous 7.1-channel playback
• Up to 32-bit/192 kHz playback (due to limitations in HDA bandwidth, 32-bit/192 kHz is not supported for 7.1-channel audio)
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• 10 DAC channels
• SupremeFX shielding technology
• Dual operational amplifiers
• Independent 2.0-channel output
• Impedance sense for front and rear headphone outputs
• Multi-stream stereo to the front-panel outputs
• Jack detection
• Front panel jack retasking
• A customized version of the Realtek ALC1220 codec (according to the Google KI "Gemini")
• ...

• ASMedia ASM1064 chipset
  • PCIe 3.0 x1 interface
  • Automatic detection of lane configuration on boot-up
  • Supports transfer rate of 2,5 Gbit/s (320 MB/s), 5 Gbit/s (640 MB/s) or 8 Gbit/s (1 GB/s) per lane
  • 4 x SATA 6 Gbit/s port (bootable)
  • AHCI SPEC Rev. 1.4
  • Supports NCQ
  • Supports port multiplier command-based switching
  • Supports port multiplier FIS-based switching
  • ...

• 240 GB capacity
• 3D TLC technology
• PCIe 3.0 x4 interface
• Up to 3100 MB/s sequential read
• Up to 1050 MB/s sequential write
• Up to 180.000 IOPS for 4KB random read
• Up to 240.000 IOPS for 4KB random write
• 400 TBW warranty
• M.2 2280 form factor
• ...

• 250 GB capacity
• Samsung V-NAND TLC technology
• Samsung MGX controller
• SATA 6 Gbit/s interface
• Up to 550 MB/s sequential read
• Up to 520 MB/s sequential write
• Up to 10.000 IOPS for 4KB random read(QD1)
• Up to 42.000 IOPS for 4KB random write(QD1)
• Up to 98.000 IOPS for 4KB random read(QD32)
• Up to 90.000 IOPS for 4KB random write(QD32)
• 1.500.000 hours MTBF (reliability)
• 150 TBW warranty
• 2,5" form factor
• ...

• 1 TB capacity
• CMR technology
• SATA 6 Gbit/s interface
• 64 MB cache
• 7.200 RPM performance class
• 3,5" form factor
• ...

Citation from the data sheet:

Western Digital WD Blue 3.5-inch PC hard drives deliver solid reliability for office and web applications, and they are perfect for extra storage for desktop PC computing.

Keep in mind, that a computer scientist calculates as follows:

• 1 KB = 1024 bytes
• 1 MB = 1024 x 1024 bytes
• 1 GB = 1024 x 1024 x 1024 bytes

Whereas an HDD manufacturer calculates the capacity of a harddisk as follows:

• 1 KB = 1000 bytes
• 1 MB = 1000 x 1000 bytes
• 1 GB = 1000 x 1000 x 1000 bytes

As a result, HDD maintenance software often shows a lower capacity than specified by the HDD manufacturer.

• 750 GB capacity
• CMR technology
• SATA 3 Gbit/s interface
• 64 MB cache
• 5400 RPM performance class
• 3,5" form factor
• ...

Citation from the datasheet:

WD Caviar Green drives make it possible for energy-conscious customers to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.

Keep in mind, that a computer scientist calculates as follows:

• 1 KB = 1024 bytes
• 1 MB = 1024 x 1024 bytes
• 1 GB = 1024 x 1024 x 1024 bytes

Whereas an HDD manufacturer calculates the capacity of a harddisk as follows:

• 1 KB = 1000 bytes
• 1 MB = 1000 x 1000 bytes
• 1 GB = 1000 x 1000 x 1000 bytes

Therefore software for the maintenance of HDDs often displays a lower capacity than specified by the HDD manufacturer.

The HDDs were already in use by my previous Home Office Computer 2014.

• SATA interface
• M-DISC support
• Read speed

  •	DVD±R	16X
  •	DVD+RW	13X
  •	DVD-RW	8X
  •	DVD-ROM	16X
  •	DVD±R(DL)	12X
  •	DVD+R(SL, M-DISC)	12X
  •	DVD-ROM(DL)	12X
  •	DVD-RAM	5X
  •	CD-R	48X
  •	CD-ROM	48X
  •	CD-RW	40X
  •	DVD-Video Playback	6X
  •	Audio-CD Playback	10X

• Write speed

  •	DVD±R	24X
  •	DVD+RW	8X
  •	DVD-RW	6X
  •	DVD±R(DL)	8X
  •	DVD+R(SL, M-DISC)	4X
  •	DVD-RAM	5X
  •	CD-R	48X
  •	CD-RW	24X

• Size (L x W x H) 170 mm x 146 mm x 41 mm
• 600 g weight (± 50 g)
• ...
